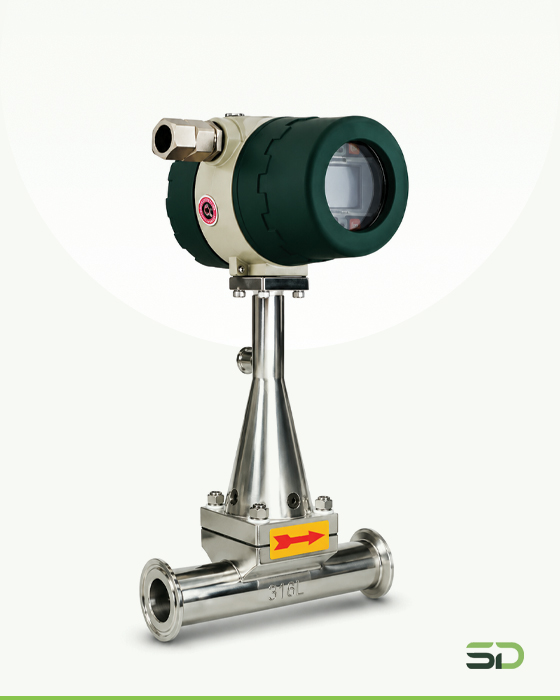

Vortex Flowmeter (SDVFM series) A Vortex Flowmeter with Temperature and Pressure Compensation is designed to measure the mass or volumetric flow rate of gases, steam, or liquids. It operates on the principle of vortex shedding, where fluid passing a bluff body generates vortices at a frequency proportional to the flow velocity. With integrated temperature and pressure sensors, the flowmeter dynamically adjusts the readings to account for variations in fluid density, enabling real-time compensation. This results in high-accuracy mass flow measurement, especially critical in steam and gas applications in industries like power, chemical, HVAC, and oil & gas.
| Suitable to Measure | : | Steam, Air and various industrial gases |
| Measuring Principle | : | Karman vortex |
| Line Size Range | : | 15 mm (1/2″) to 300 mm (12″) |
| Rated Pressure | : | Up to 40 bar (Higher pressure on request) |
| Rated Temperature | : | -40°C to +300°C |
| Density | : | ≥ 0.7 kg/m³ or more for gas applications |
| Body Material | : | ASTM A216 Gr.WCB / ASTM A351 CF8 / ASTM A351 CF8M / ASTM A351 CF3M / ASTM A351 CF3 / ASTM A105 / AISI SS304 / AISI SS304L / AISI SS316 / AISI SS316L |
| Power Supply | : | 12–32 VDC or 110–230 VAC |
| Output Signal | : | 4–20 mA + HART / RS485 + Pulse |
| Enclosure | : | Die cast aluminum ATEX certified to II 2 GEX DB IIC T6 GB |
| Cable Entry | : | M20 × 1.5 or 1/2″ NPT |
| Repeatability | : | ±0.1% on FSD |
| Accuracy | : | ±0.5% on FSD |
| Linearity | : | ±0.5% on FSD |

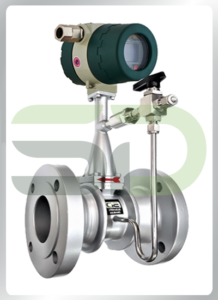

Vortex Flowmeter with Temperature & Pressure Compensation
Product Code: SDVFM-F-TPC
Vortex Flowmeter with Remote Indication Flowmeter
Product Code: SDVFM-F-TPC-RM

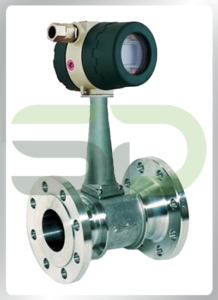

Flanged Type Vortex
Flowmeter
Product Code: SDVFM-F

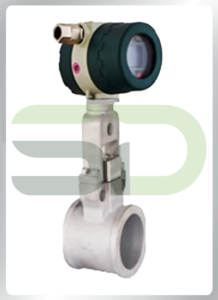

Wafer Type Vortex
Flowmeter
Product Code: SDVF
