Hydrostatic Level Indicator Transmitter SDSPLT-F

Level Indicator
Home > Products > Hydrostatic Level Indicator Transmitter SDSPLT-F

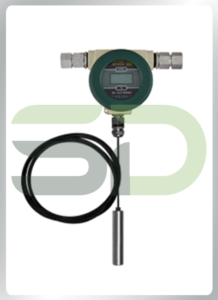

Hydrostatic Level Indicator Transmitter

Product Code: SDSPLT / SDSPLT-F

SDSPLT static pressure level indicator transmitter assembled with advanced pressure sensor and double layers cable which are our original creation with wear resistant and water proof featutes can meet the demands of various extreme service conditions. Full welding stainless steel armored tube structure ensures the measurement in the corrosive liquids.The measured medium can be water, oil, acid, alkali or viscous liquid. Advanced in technology, precise in measure, reliable in quality, easy in installation, SDSPLT transmitter is an ideal and economical level instrument for process measure and control system.

SDSPLT level indicator transmitter is tailored for liquid sulfur and high temperature naphthol and combined with previous international application experiences. This product with stainless steel armored welding cable and adopted with special high temperature large diaphragm sensor can be used to measure high temperature nd strong viscosity medium and can solve other measuring difficulties process industry.

Specification

Measuring range:0~1m;0~100m
Output signal:4~20mAmp+HART
Ambient temperature:-30~80 °C
Power supply:14V~36VDC; 24V/600 ohm
Flanged mounting:DN25~50PN1.0
Enclosure:IP66
Accuracy:+/-0.25%, +/-0.5%
Medium temperature:-40~80 °C special type:<=250°C
Safety class:intrinsically safe:Exia IICT6 explosion-proof: Exd IIBT4-T6
Process connection Flanged
Mounting:Top of the Tank

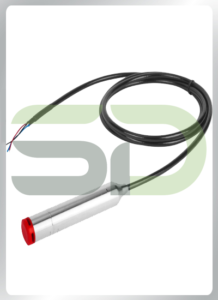

Hydrostatic Level Transmitter

Product Code : SD-HLT
Transmitter Output:4~20mAmp+HART
Accuracy:0.2% 0.5%
Range:Upto 100M
Supply:-230 VAC/24 VDC

Hydrostatic Level Indicator

Product Code : HDLI

The Scientific Hydrostatic Level Indicator is a robust diaphragm type gauge with a dial read out. It is designed for easy on site adjustment to take account of varying liquid density.

This gauge requires no power source and is suitable for fitting to tanks, which may be used for different liquids where the specific gravity may change. These externally mounted version is suitable for general application, though it is particularly suitable for marine applications.

Side Mounted Hydrostatic Level Indicator Transmitter

Product Code : SDSPLT-F-SM

Description & Features

Level Range: 0-0.5 M and 0-200 M
Excellent long term stability
Flush diaphragm
Small thermal effect
Capacitive ceramic sensor with high resistance.
Suitable for Marine, Sewage treatment and all types of level measurements

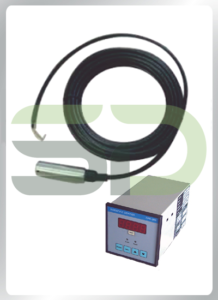

Hydrostatic Level Transmitter With Remote Indication

Product Code : SDSPLT-PM-2001
Display:4 Digit LCD
Supply:230 VAC/24 VDC
Range:Upto 100M
Transmitter Output:4-20mAmp+HART
Enclosure:Ex-Proof
