Transparent Level Gauges are Designed specially to meet the most critical requirements of Petrochemical, Fertilizer, Pharmaceutical & Chemical Industries Involving Inflammable Toxic, High Pressure, High temperature liquids. Permits observations of level colour and clarity of liquid through pair of heavy duty glasses on either side of Liquid chamber. The Liquid enters the chamber on either side of which are a pair of heavy duty glasses, which permits observations of level, colour and clarity of the Liquid.
Specification
| Application | : | Liquids |
| Liquid Chamber (Wetted Part) | : | MS/CS/ASTM A105/SS304/SS316/PP Other Materials on request |
| Cover Plate (Non Wetted Part) | : | MS/CS/ASTM A105/SS304/SS316/PP Other Materials on request |
| Design Temperature | : | Upto 230°C |
| Design Pressure | : | Up to 40 Kg/cm² |
| C/C Distance | Upto 6000 mm | |
| Connection | : | Flanged to ASA/BS/DIN/Socket Weld/Butt Weld |
Transparent Level Indicator With 2 Nos
Isolation Valve And 1 No. Drain Valve
Product Code:
TTI2000-2IV-1DV
Transparent Level Indicator Without
Isolation and Drain Valve
Product Code:
TTI2000-NIVD

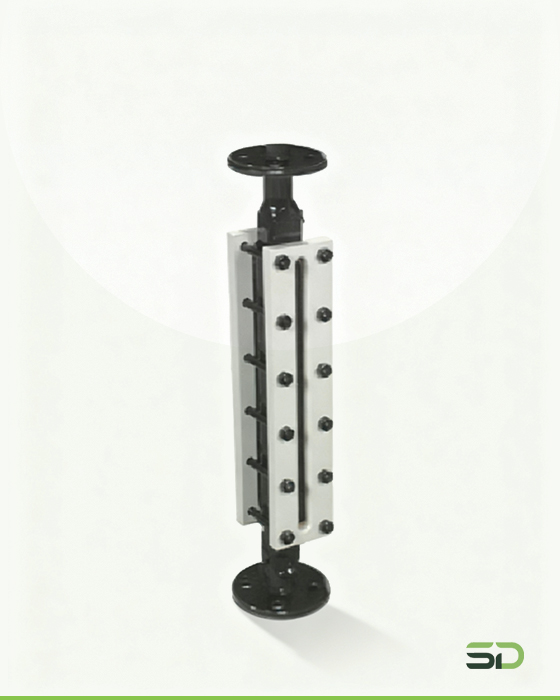

Transparent Level Indicator
With Vertical Connection
Product Code:
TTI2000-VF
Transparent Level Indicator With Spring
Loaded Push Valve & Drain Valve
Product Code:
TTI2000-SPRDV
Transparent Level Indicator With
Frost Free Arrangement
Product Code:
TTI2000-VFFA
Transparent Level Indicator With
High & Low Level Switch
Product Code:
TTI2000-HLS
Transparent Level Indicator
With Steam Jacket
Product Code:
TTI2000-SJ
