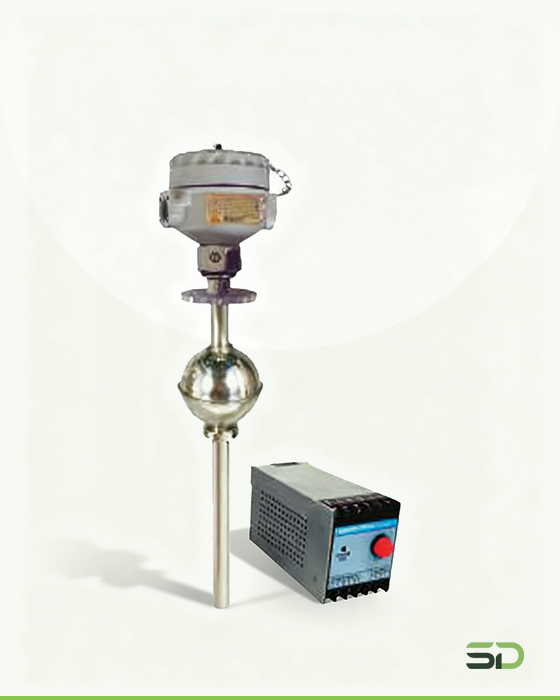

Top Mounted Magnetic Level Switch The Top Mounted Magnetic Level Switch is a float-based device used for point-level detection of liquids in tanks or vessels. It operates on the principle of magnetic reed switch activation. The float, containing a permanent magnet, moves with the liquid level along a guide tube. As the float passes fixed reed switch positions inside the tube, the magnetic field actuates the switch, providing an ON/OFF signal. This design is ideal for non-pressurized and pressurized tanks, offering reliable level detection, simple installation, and compatibility with various liquids, including water, oil, and chemicals.
| Detecting Principle | : | Magnetic Displacement-based |
| Switch Type | : | Hermetically Sealed Reed Switch |
| Switch Rating | : | 5A @ 250 VAC / 5A @ 30 VDC |
| Output Signal | : | On/Off (Potential Free Contacts) |
| Number of Switch Points | : | 1 to 3 (Factory Set or Field Adjustable) |
| Set Point Adjustment | : | Via Float Position (Adjustable Ranges) |
| Media Type | : | Clean / Dirty Liquids |
| Minimum Media Density | : | ≥ 0.5 kg/l |
| Process Connection | : | Flanged / Threaded |
| Mounting Type | : | Top / Side / External Cage Mounted |
| Displacer Material | : | AISI SS304 / AISI SS316 / PTFE / PP |
| Chamber Material | : | Carbon Steel / AISI SS304 / AISI SS316 |
| Temperature Range | : | -40°C up to +150°C (Higher on request) |
| Pressure Range | : | Up to 40 kg/cm² (Higher on request) |
| Enclosure | : | Die-Cast Aluminum (Flameproof / Weatherproof) |
| Ingress Protection | : | IP-66 / IP-67 |

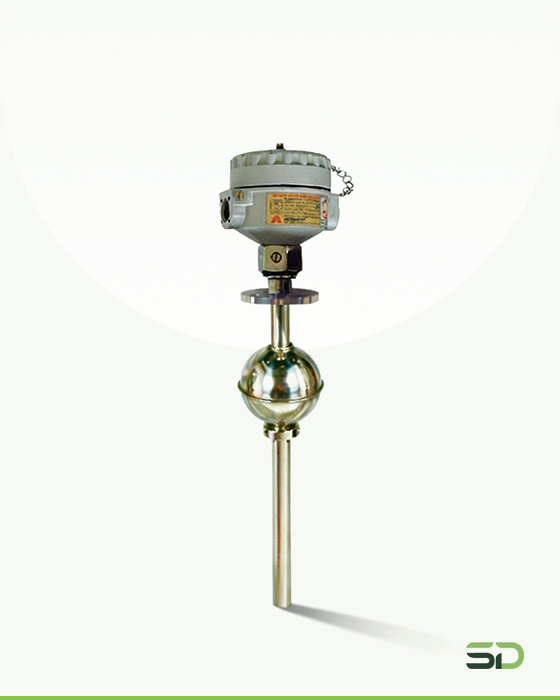

Top Mounted Magnetic Level Switch Single Float
Product Code: TLS1000-1F
External Cage Type Top Mounted Magnetic Level Switch with Single Floats
Product Code: TLS1000-1F-EC

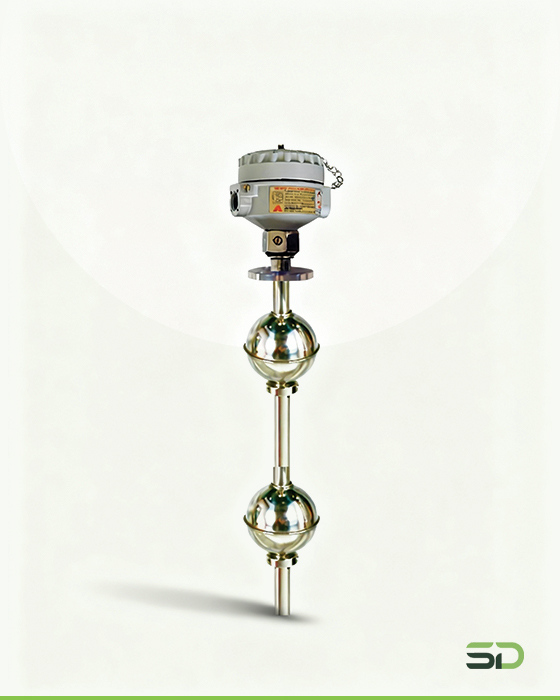

Top Mounted Magnetic Level Switch with Two Floats
Product Code: TLS1000-2F

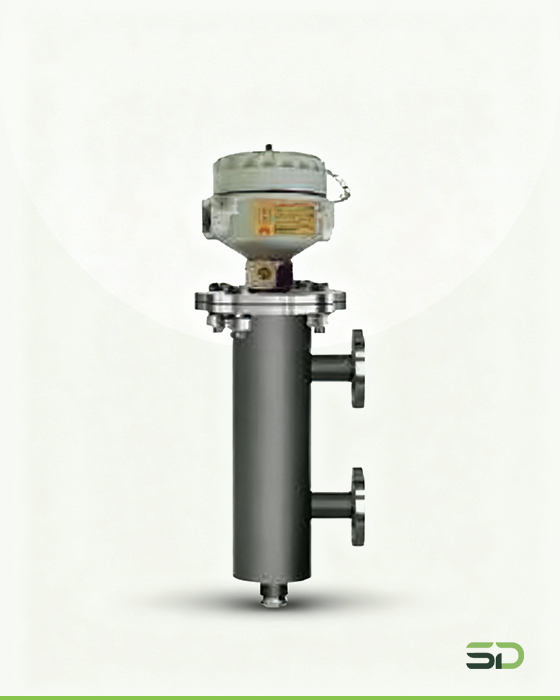

External Cage Type Top Mounted Magnetic Level Switch with Two Floats
Product Code: TLS1000-2F-EC

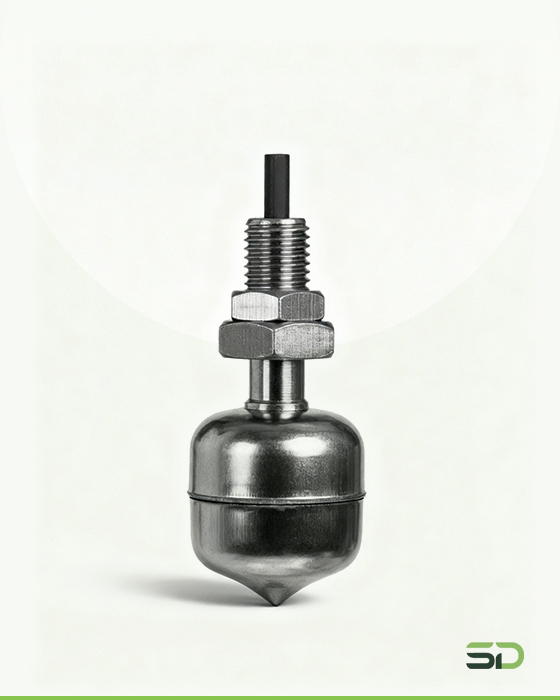

Top Mounted Magnetic Mini Level Switch
Product Code: TLS1000-Mini
