Suction Strainer

Home > Products > Suction Strainer

Suction Strainer

Pipe Line Strainers

The strainer is a filtering element incorporated in the pipe line. It is called a ‘Y’ Type, ‘Basket’ Type or ‘T’ Type strainer because of its shape. Inside the strainer is a mesh, which blocks any suspended impurities that the fluid has and is collected in the mesh. During maintenance the mesh can be removed and cleaned of the impurities.

Design Conforms to ASME B16.10 & ASTM Section VIII-Div.2


Material of Wetted Parts:CI/ASTM A216 Gr WCB/ASTMA351CF 8/ASTMA351CF8M/MS/CS/SS304/SS304L/SS316/SS316L/PP & HDPE
Filter Elements:SS316/SS304/BRASS
Mesh Size:5 to 500 microns
Temperature:Up to 600°C
Pressure:Up to 60 Kg/CM²
Line Size:Up to 1200 NB depening upon the type
Connection:Flanged to ASA/BS/DIN/JIS/Screwed BSP/NPT/Butt Weld

Y Type Strainer Flanged End

Product Code: YST-F

Y Type Strainer Screwed End

Product Code: YST-S

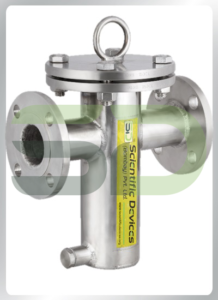

Basket Type Strainer

Product Code: BST-F

Tee Type Strainer

Product Code: TF

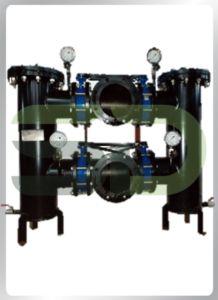

Duplex Filter Strainer

Product Code: DST

Conical Strainer

Product Code: CST

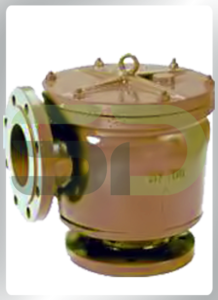

Mud Box Angular

Product Code: MDA

Mud Box Straight

Product Code: MDS

Suction Type Strainer

Product Code: SSTR
