Side Mounted Magnetic Level Switch A Side Mounted Magnetic Level Switch is used for reliable point-level detection of liquids in tanks and vessels. Installed horizontally, it operates through a magnet-equipped float that actuates a reed switch without direct contact, ensuring safe and durable performance. Constructed from corrosion-resistant materials, it is available in flameproof enclosures. Ideal for water treatment, chemical storage, petroleum, and process industries, it offers easy installation and is suitable for clean or slightly contaminated liquids.
| Working Principle | : | Magnetic Displacement-based |
| Switch Type | : | SPDT / DPDT (Single or Dual Switch Contacts) |
| Switch Rating | : | 5A @ 250 VAC / 5A @ 30 VDC |
| Output Signal | : | On/Off (Dry Contact) |
| Media Type | : | Clean / Dirty Liquids |
| Minimum Media Density | : | ≥ 0.5 kg/l |
| Process Connection | : | Flanged / Threaded (3″ NB or as required) |
| Mounting Type | : | Side / External Cage Mounted |
| Float Material | : | AISI SS304 / AISI SS316 / PTFE Coated |
| Chamber Material | : | Carbon Steel / AISI SS304 / AISI SS316 (If Cage Type) |
| Temperature Range | : | -40°C up to +230°C (Higher on request) |
| Pressure Range | : | Up to 40 kg/cm² (Higher on request) |
| Enclosure | : | Die-Cast Aluminium (Flameproof / Weatherproof) |
| Ingress Protection | : | IP-66 / IP-67 |

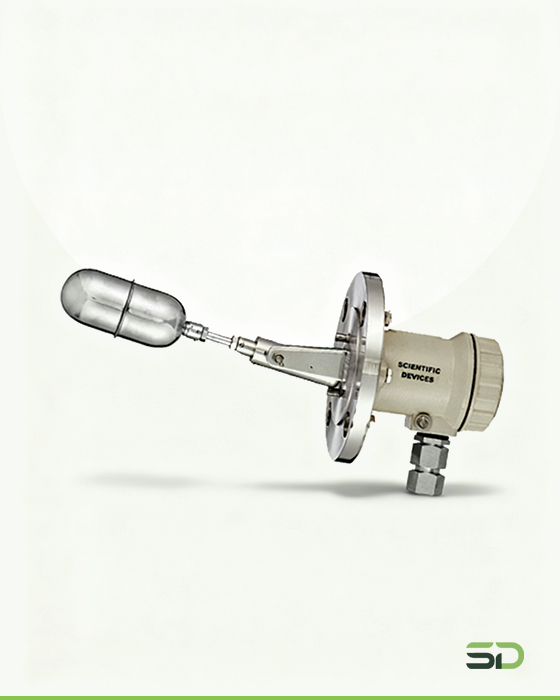

Side Mounted Magnetic Level Switch
Product Code: LS9900

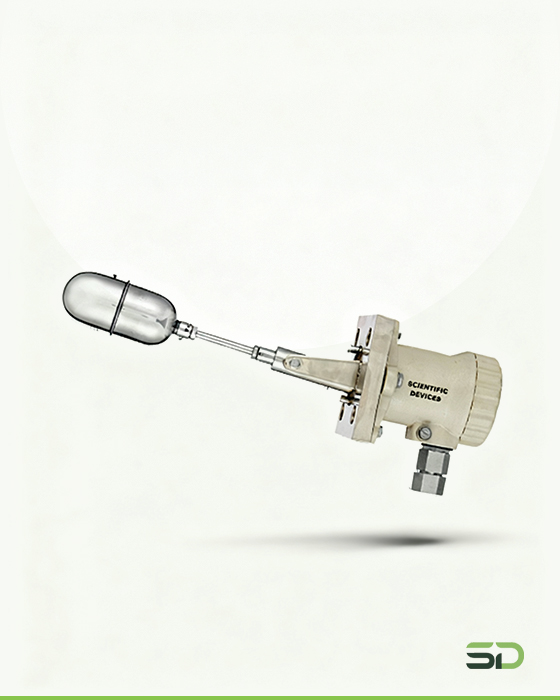

Side Mounted Magnetic Level Switch Square Flange Connection
Product Code: LS9900-SQ
Mini Level Switches
Product Code: LS9900-MINI-SS-TILT

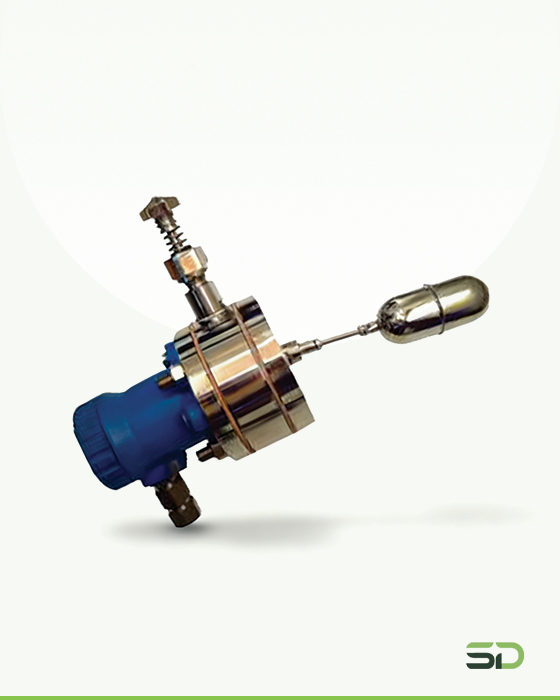

Side Mounted Magnetic Level Switch Test Device
Product Code: LS9900-TDS

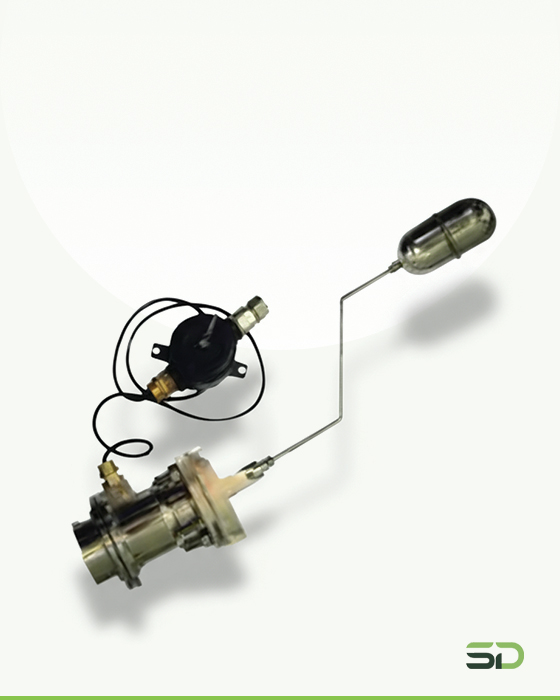

Side Mounted Magnetic Level Switch Extended Float Stem and Junction Box
Product Code: LS9900-MRY

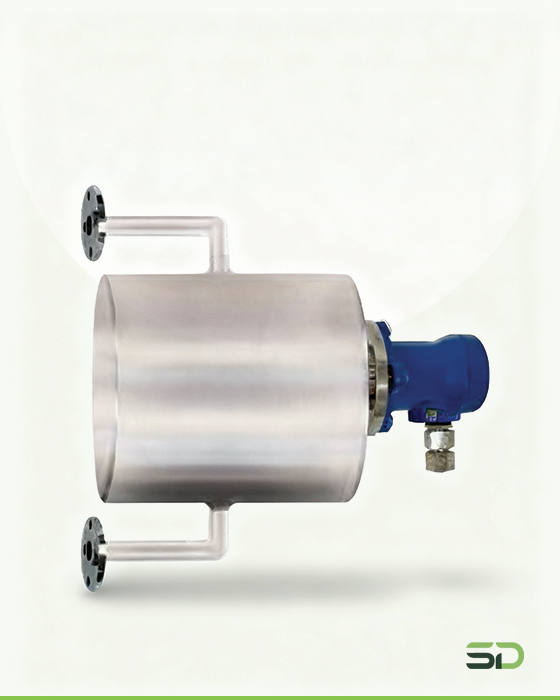

Side Mounted Magnetic Level Switch External Cage
Product Code: LS9900-EXCG
