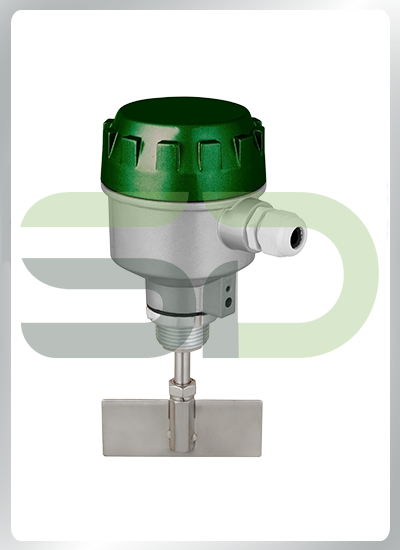

Rotary Paddle Level Switch

Product Code: SD-R2-10-S

The purpose of the rotary paddle level switch is to detect the presence of solid/powdery material in most kinds of tanks, bins and containers. The unit is usually located through a bin wall at the top, middle or low level of a tank. During normal operation (no material present) a synchronous motor rotates the paddle at one RPM speed. When this paddle rotation is stopped by material movement, surrounding the paddle, motor will stall and cause the Micro-switch to change state (indicating an alarm or control).

Rotary Paddle level switch operating principle is simple. A unit is usually located through a bin wall at the top, middle or low level of a bin. During normal operation (no material present) a synchronous motor rotates the paddle at 1 RPM. When this paddle rotation is impeded by material, surrounding the paddle, motor will stall and cause the Micro switch to change state. (Indicating an alarm or control).

Specification

Housing:Die-Cast aluminum
Cable Glands:13.5 PG Glands
Temperature:0°C to 80°C
Power Consumption:3 W (approx.)
Operating Voltage:110-220 VAC/24 VDC
Output:1 sets of Potential free contacts
Mounting:Threaded: 1¬” BSP/NPT, Flanged
Wetted Parts:SS 316 / SS 304
Switching Delay:5 sec. (Covered, Uncovered)
Probe Length:100 mm to 3000 mm (Insertion)

Features:

  • Rugged sealing ring prevents dust from infiltrating the housing body along the shaft.
  • Adjustable Torque – If the rotary paddle encounters overloading, the motor will automatically shut down the motor to prevent damage to the inner mechanisms and extend motor life.
  • Very suitable for small tanks and low density materials.
  • Adjustable and extendible shaft models available.
  • A wide variety of paddles are available.
