Electromagnetic Flowmeter (SMAG series) An Electromagnetic Flowmeter (Magmeter) is a volumetric flowmeter that does not have any moving parts and is ideal for wastewater applications or any dirty liquid which is conductive or water-based. It operates on Faraday’s Law of Electromagnetic Induction, which states that a conductor moving through a magnetic field produces an electrical signal within the conductor. This signal is proportional to the velocity of the water moving through the field. As fluid flows through the magnetic field, conductive particles in the fluid create changes in voltage, which are used to measure and calculate the velocity of water flow.
Design & Calibration Conforms to ISO 9104 & ISO DIS 6817
| Suitable to Measure | : | Liquids having conductivity ≥ 5 µS/cm |
| Measuring Principle | : | Faraday’s law of electromagnetic induction |
| Line Size Range | : | 10 mm to 2000 mm |
| Rated Pressure | : | Up to 10 / 16 / 25 / 40 bar |
| Rated Temperature | : | -20°C to +150°C |
| Lining Material | : | Hard Rubber / Neoprene / PTFE / PFA |
| Electrode Material | : | SS316L / Hastelloy C / Tantalum / Titanium / Platinum |
| Body Material | : | MS / SS304 / SS316 |
| Power Supply | : | 85–265 VAC / 18–36 VDC / Battery Operated |
| Output Signal | : | 4–20 mA + HART / RS485 + Pulse |
| Enclosure | : | Die cast aluminium IP65 / IP67 / IP68 |
| Cable Entry | : | M20 × 1.5 |
| Repeatability | : | ±0.1% of FSD |
| Accuracy | : | ±0.5% of FSD |
| Linearity | : | ±0.5% of FSD |

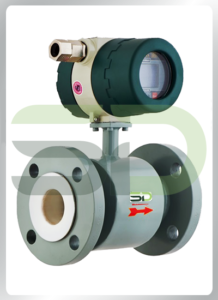

Electromagnetic Flow Meter with 4-20mA Output
Product Code: SMAG- 300-FR-TL-TX

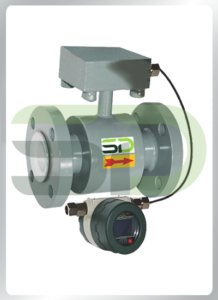

Electromagnetic Flowmeter with Remote Indication
Product Code: SMAG- 300-TX-PM

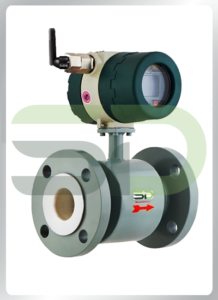

Data Communication of Electromagnetic Flow Meter
Product Code: SMAG-300-FR-TL-TX-GSM

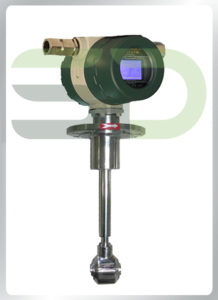

Insertion Type Electromagnetic Flowmeter
Product Code: SMAG-700-TL-TX-P

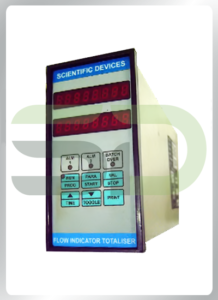

Panel Mounted Flow rate Indicator
Product Code: SD-2001
