The strainer is a filtering element incorporated in the pipe line. It is called a ‘Y’ Type, ‘Basket’ Type or ‘T’ Type strainer because of its shape. Inside the strainer is a mesh, which blocks any suspended impurities that the fluid has and is collected in the mesh. During maintenance the mesh can be removed and cleaned of the impurities.
Design Conforms to ASME B16.10 & ASTM Section VIII-Div.2
| Material of Wetted Parts | : | CI/ASTM A216 Gr WCB/ASTMA351CF 8/ASTMA351CF8M/MS/CS/SS304/SS304L/SS316/SS316L/PP & HDPE |
| Filter Elements | : | SS316/SS304/BRASS |
| Mesh Size | : | 5 to 500 microns |
| Temperature | : | Up to 600°C |
| Pressure | : | Up to 60 Kg/CM² |
| Line Size | : | Up to 1200 NB depening upon the type |
| Connection | : | Flanged to ASA/BS/DIN/JIS/Screwed BSP/NPT/Butt Weld |
Y Type Strainer Flanged End
Product Code: YST-F

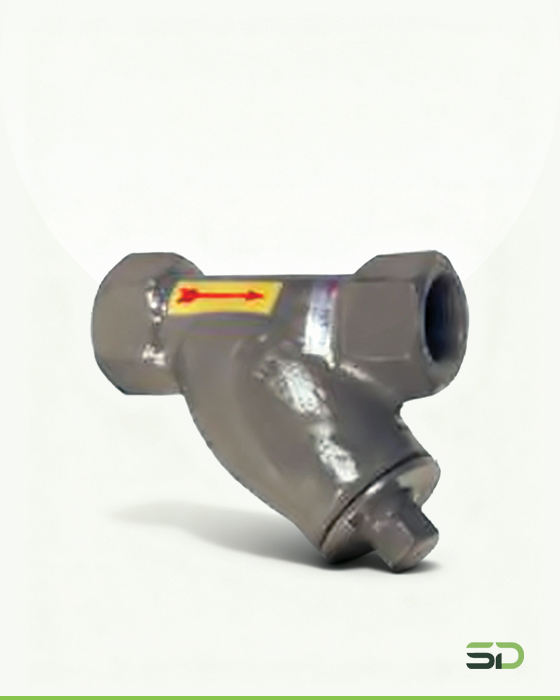

Y Type Strainer Screwed End
Product Code: YST-S
Basket Type Strainer
Product Code: BST-F
Tee Type Strainer
Product Code: TF
Duplex Filter Strainer
Product Code: DST
Conical Strainer
Product Code: CST
Mud Box Angular
Product Code: MDA
Mud Box Straight
Product Code: MDS
Suction Type Strainer
Product Code: SSTR
