An Acrylic Body Rotameter is a variable area flow meter designed to measure the flow of liquids and gases in low-pressure systems. Made from a solid, transparent acrylic block, it allows easy direct reading of flow rate through an engraved calibrated scale.
A float moves vertically inside a tapered flow tube; its position indicates the flow rate. Lightweight, corrosion-resistant, and easy to install, it is ideal for laboratories, water treatment units, and general-purpose flow monitoring in non-aggressive media.
Design & Calibration Confirms to ISA-RP 16.5 & 16.6
| Suitable to Measure | : | Liquids & Gases |
| Density / Sp. Gravity | : | Up to 1.85 |
| Viscosity | : | Up to 100 cp |
| Rated Temperature | : | 60°C |
| Rated Pressure | : | Up to 6 Kg/cm² |
| Measuring Range | : | Up to 30,000 L/hr of Water / Liquid & Up to 800 Nm³/hr of Air / Gas (NTP) |
| Line Size | : | 1/4″ to 2″ NB |
| End Connection Material | : | AISI SS304 / AISI SS304L / AISI SS316 / AISI SS316L / PVC / PP |
| Connection | : | Screwed to BSP / NPT |
| Accuracy | : | ±2% on FSD & ±1.5% on request |

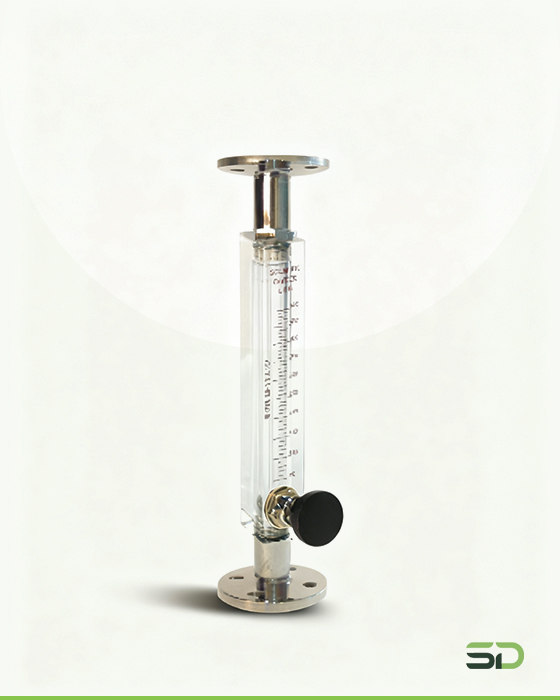

Acrylic Body Rotameter with Flanged Connection with & without Isolation Valve
Product Code: SDTAIV

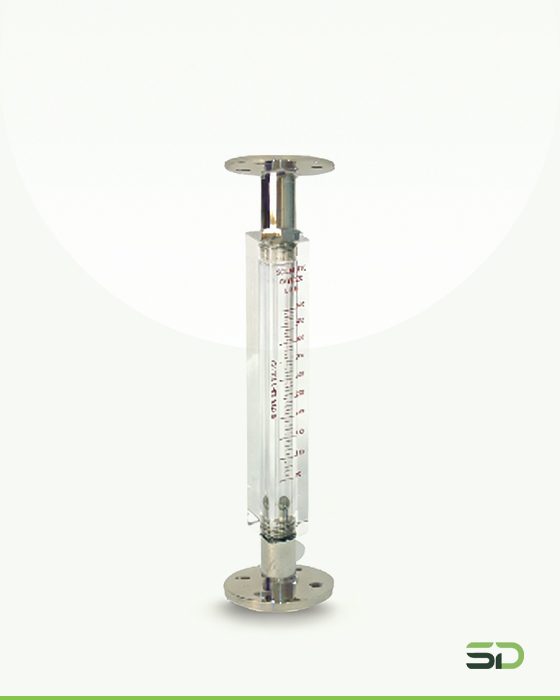

Acrylic Body Rotameter with Flanged Connection with & without Isolation Valve
Product Code: SDA

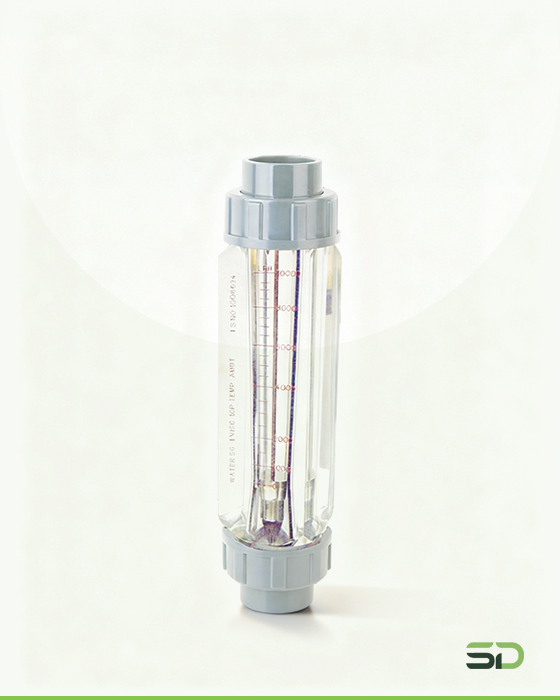

Acrylic Body Rotameter with Union Fitting
Product Code: SDAUF

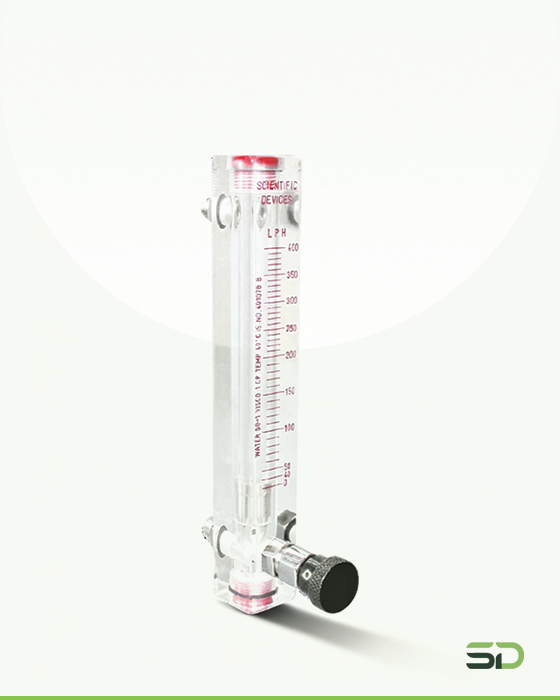

Acrylic Body Rotameter with & without Isolation Valve
Product Code: SDTRCIV

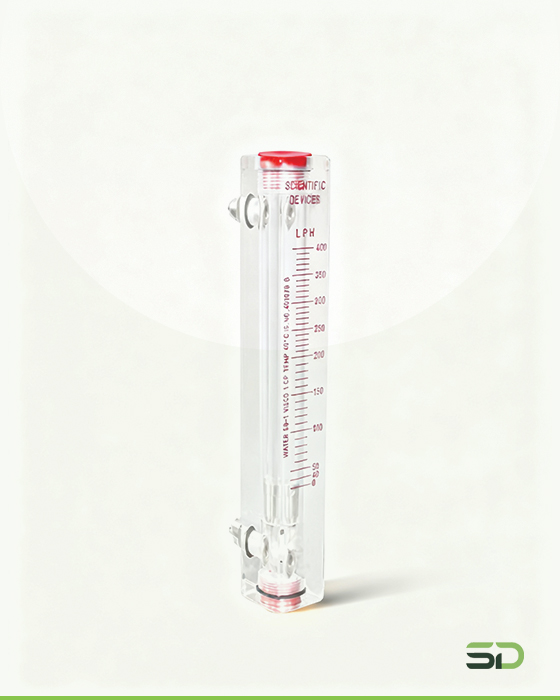

Acrylic Body Rotameter with & without Isolation Valve
Product Code: SDTRC
Acrylic Body Rotameter with Isolation Valve And DP Regulator
Product Code: STADPR

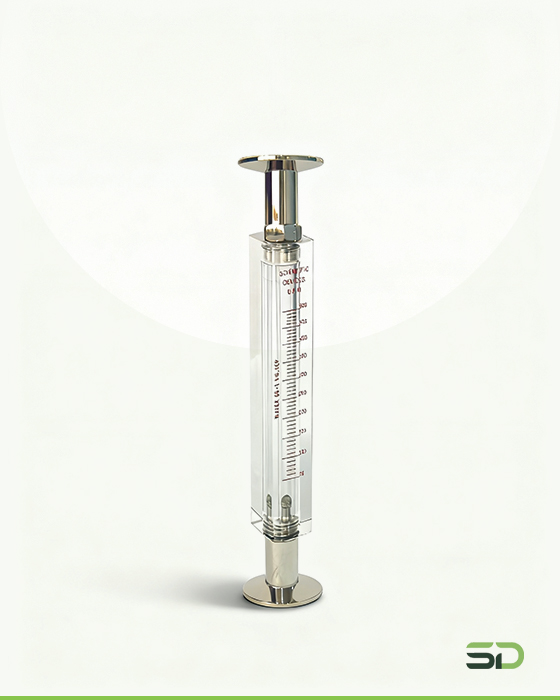

Acrylic Body Rotameter with Triclover Connection with & without Isolation Valve
Product Code: SDATC

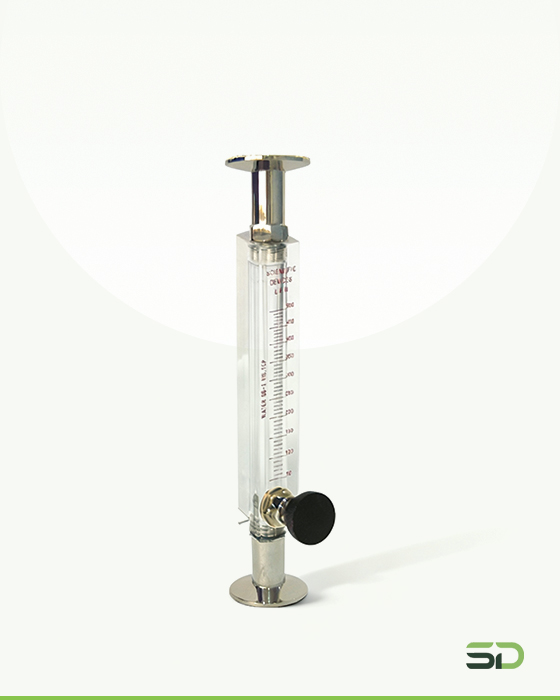

Acrylic Body Rotameter with Triclover Connection with & without Isolation Valve
Product Code: SDATCIV
Acrylic Body Rotameter With Vertical Screwed Connection with & without Isolation Valve
Product Code: SDAS

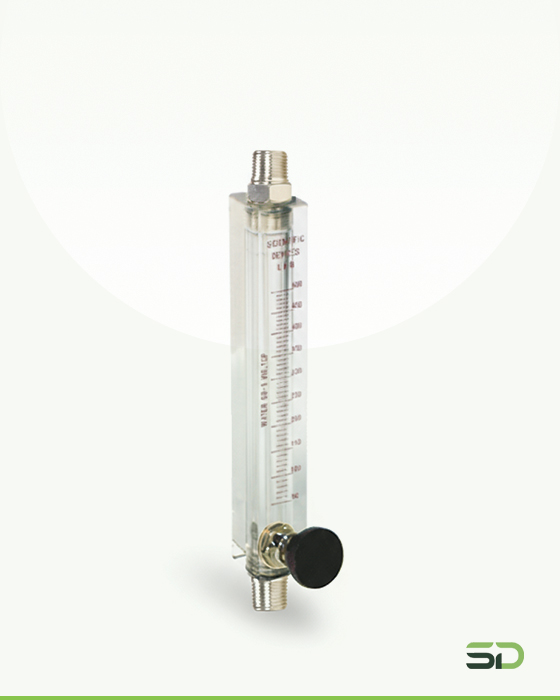

Acrylic Body Rotameter With Vertical Screwed Connection with & without Isolation Valve
Product Code: SDASIV
