Tubular Level Indicator TLG 4500 Series

Level Indicator

Tubular Level Indicator (TLG 4500 Series)

Product Code: TLG4500

Tubular Level Gauge for visual liquid level observation is very common in process industry. It is a simple and reliable device for direct reading in atmospheric or pressurized tank applications. It is mounted parallel, along the side of tank. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local liquid indication.
This is a very simple instrument. It is flange mounted to the tank. As the liquid level rises in the tank, the liquid also rises inside the glass tube and one can see the liquid level in the tank. In this model the glass tube is enclosed in an enclosure which also carries a graduated scale. The liquid level in the gauge can be conveniently read against this scale.

Specification

Application:Liquids
Wetted Part:MS/CS/SS304/SS304L/SS316/SS316L/PP/HDPE/PVC/PVDF Lined/ PTFE Lined Other Materials on request

Glass Protecting Channel:MS/SS304/SS316/PVC
Design Temperature:Up to 80°C
Design Pressure:Up to 7 Kg/cm² and full vacuum
C/C Distance Up to 3000 mm
Connection:Flanged to ASA/BS/DIN/ Socket Weld/Butt Weld
Available Options

Tubular Level Indicator with 2 Nos
Isolation Valve and 1 nos Drain Valve

Product Code:
TLG4500-2IV-1DV

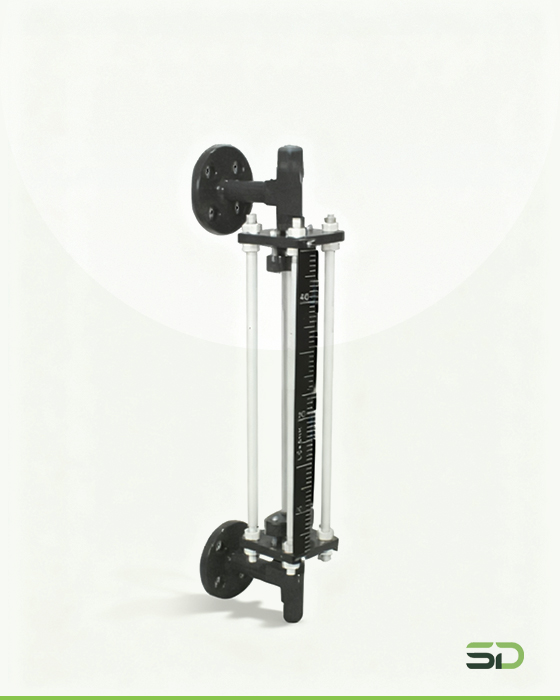

Tubular Level Indicator without
Isolation Valve and With Drain Valve

Product Code:
TLG4500-DV

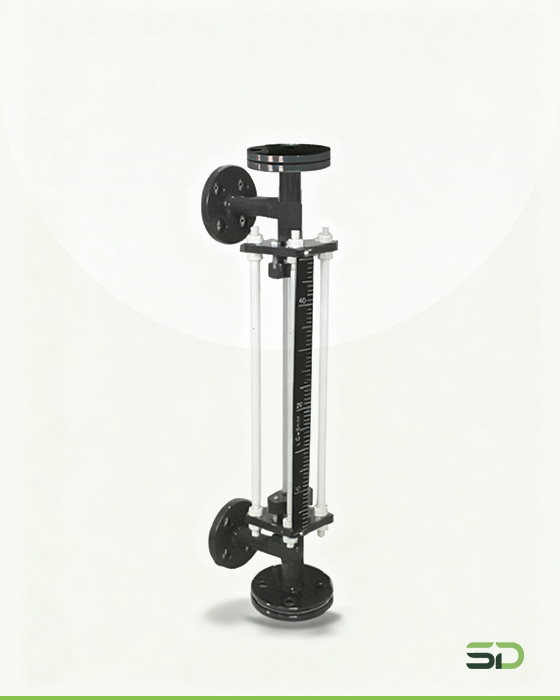

Tubular Level Indicator
with Drain Flanges

Product Code:
TLG4500-VD

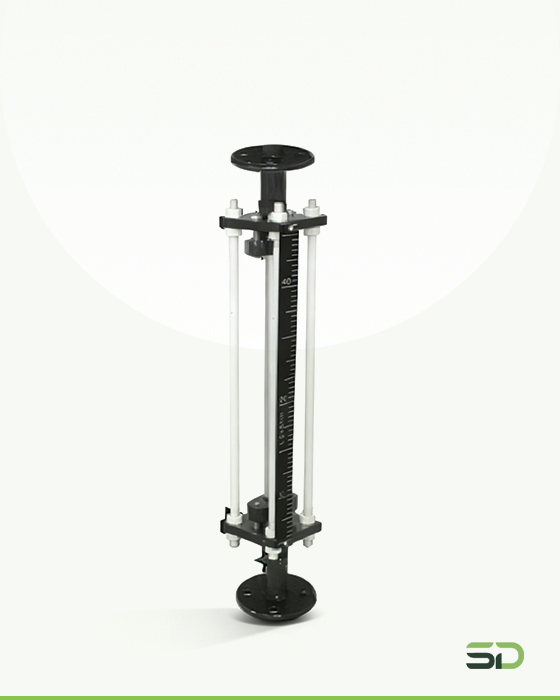

Tubular Level Indicator
with vertical connection

Product Code:
TLG4500-VF

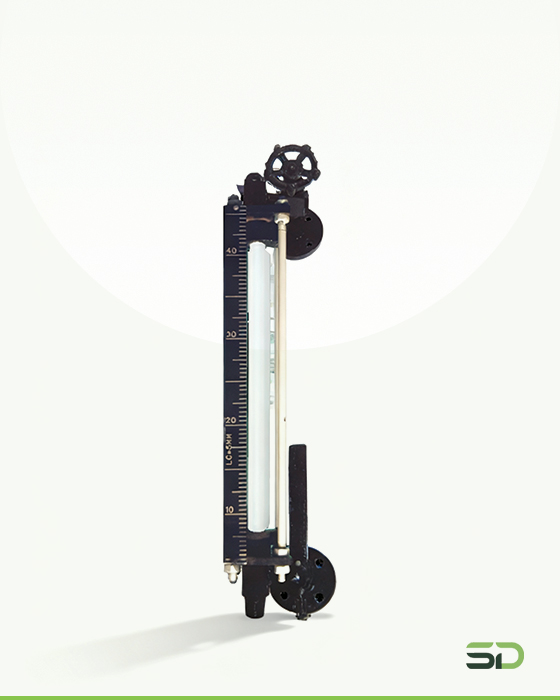

Tubular Level Indicator with
spring loaded push valve

Product Code:
TLG4500-SPRDV

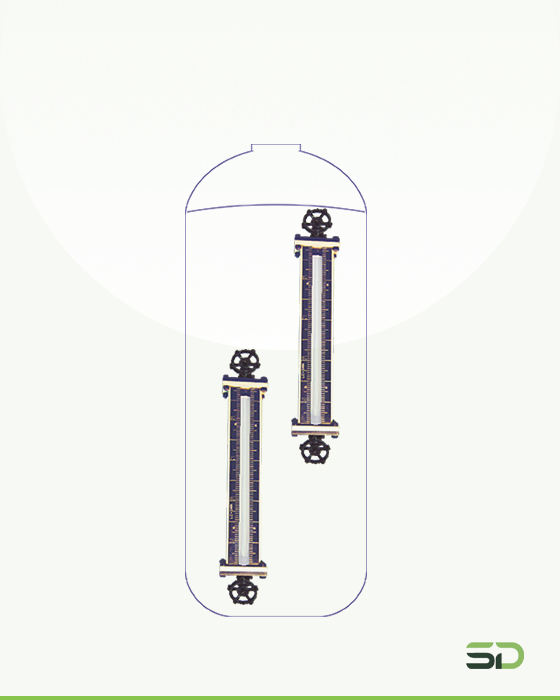

Tubular Level Indicator with
Overlapping Mounting Arrangement

Product Code:
TLG4500-VFFA

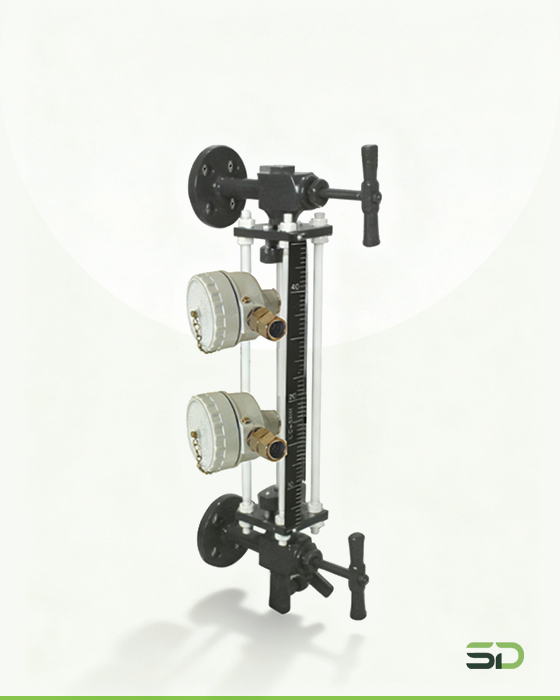

Tubular Level Indicator with
High & Low Level Switch

Product Code:
TLG4500-HLS

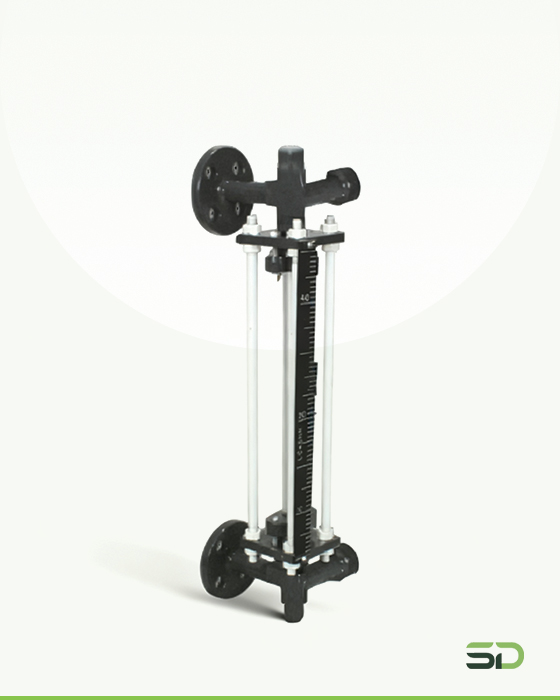

Tubular Level Indicator
with Steam Jacket

Product Code:
TLG4500-SJ
