Reflex Level Indicator

Level Indicator

Reflex Level Indicator (RTI 2000 Series)

Product Code: RTI2000

Reflex Gauges are Designed specially to meet the most critical requirements of Petrochemical, Fertilizer, Pharmaceutical & Chemical Industries Involving Inflammable Toxic, High Pressure, High Temperature Liquids. Inner surface of glass has Reflecting Prisms. Liquid Levels shows black in contrast to mirror like surface above. As the liquid fills in the tank, the liquid level can be seen in the Reflex Type Level Gauge. Since the inner surface of the glass has Reflecting Prisms, the Liquid Levels shows black in contrast to mirror like surface above.

Specification

Application : Liquids
Liquid Chmaber (Wetted Part) : MS/CS/ASTM A105/SS304/SS316/PP Other Materials on request
Cover Plate (Non Wetted Part) : MS/CS/ASTM A105/SS304/SS316/PP  Other Materials on request
Design Temperature : Upto 230°C
Design Pressure : Up to 40 Kg/cm²
C/C Distance   Upto 6000 mm
Connection : Flanged to ASA/BS/DIN/Socket Weld/Butt Weld
Available Options

Reflex Level Indicator With
2 Nos Isolation Valve
And 1 No. Drain Valve

Product Code:
RTI2000-2IV-1DV

Reflex Level Indicator
Without Isolation and
Drain Valve

Product Code:
RTI2000-NIVD

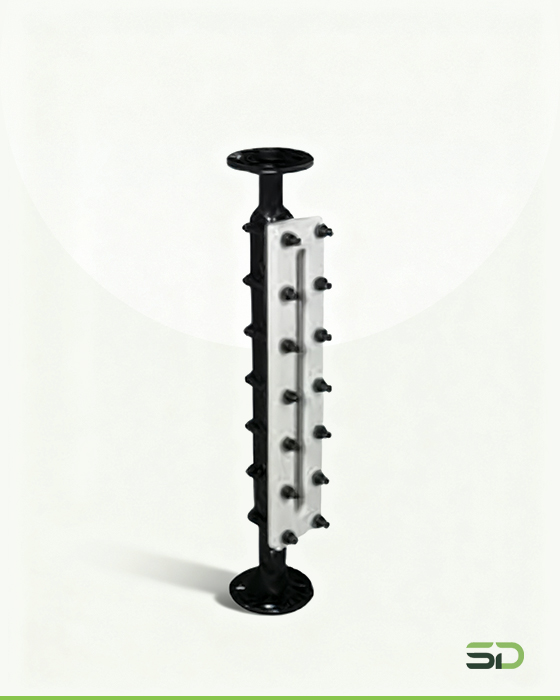

Reflex Level Indicator With
Vertical Connection and Without
Isolation and Drain Valve

Product Code:
RTI2000-VF

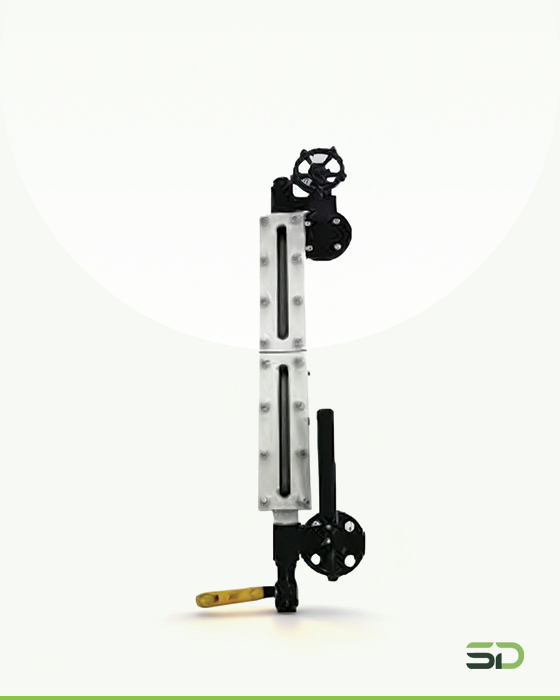

Reflex Level Indicator With
Spring
Loaded Push Valve
& Drain Valve

Product Code:
RTI2000-SPRDV

Reflex Level Indicator
With Frost Free Arrangement

Product Code:
RTI2000-VFFA

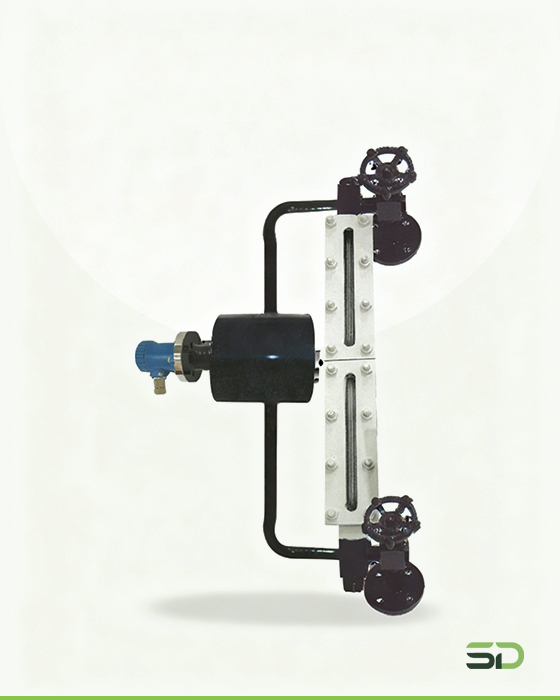

Reflex Level Indicator With
High & Low Level Switch

Product Code:
RTI2000-HLS

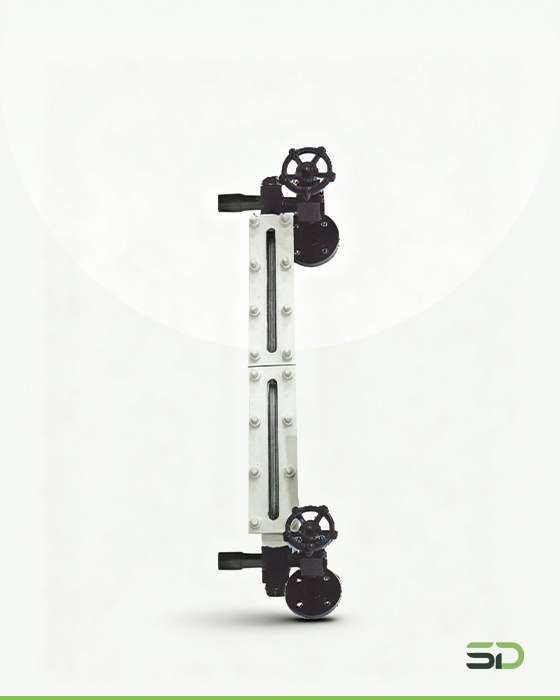

Reflex Level Indicator
With
Steam Jacket

Product Code:
RTI2000-SJ
