Float and Board Type Level Indicator

Level Indicator

Float & Board Type Level Indicator (FBLI 6600 Series)

Product Code : FBLI6600

A totally new, reliable and accurate system for liquid level measurement in tall and overhead tanks.
Highly efficient and rugged in construction, this instrument is very suitable for large storage tanks for Water, Fire Water, DM Water, Oil, LSHS, Diesel, Lube Oil, Vegetable Oils, Molasses, Silicates, Glucose, All Non-Hazard, Non- Pressurised tanks.
As the liquid rises in the tank, the large float also goes up, in turn moving the pointer on the graduated scale. The float is connected to the pointer with the wire rope which glides over almost frictionless nylon rollers, thereby ensuring trouble free operation.

Specification

Tank height / Range : 0 to 10 mtrs Without Wire Rope Guide Assembley Above 10 mtrs With Wire Rope Guide Assembley
Temperature : Up to 150°C
Pressure : Up to 1 Kg/cm²
Connection : Flanged to ASA/BS/DIN/ Screwed BSP/NPT
Wetted Part Material : MS/CS/SS304/SS304L/SS316/SS316L/PP/HDPE/PVDF Lined/PTFE Lined
Available Options

Float & Board
Type

Level Indicator

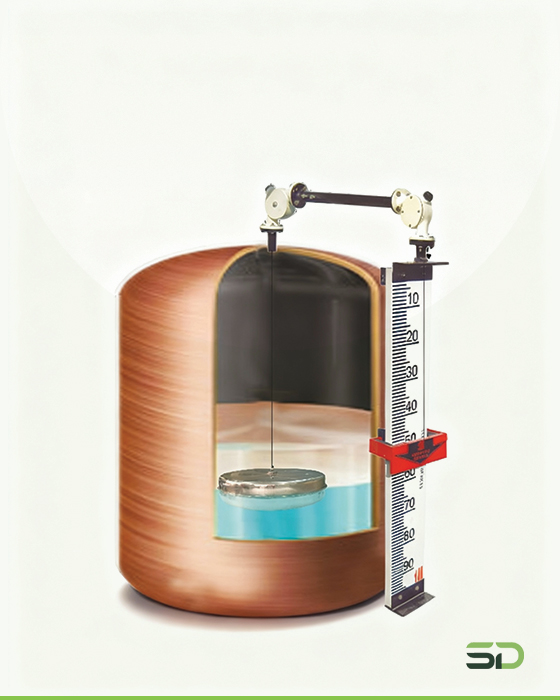

Float and Board Type Level Indicator

Product Code:
FBLI6600

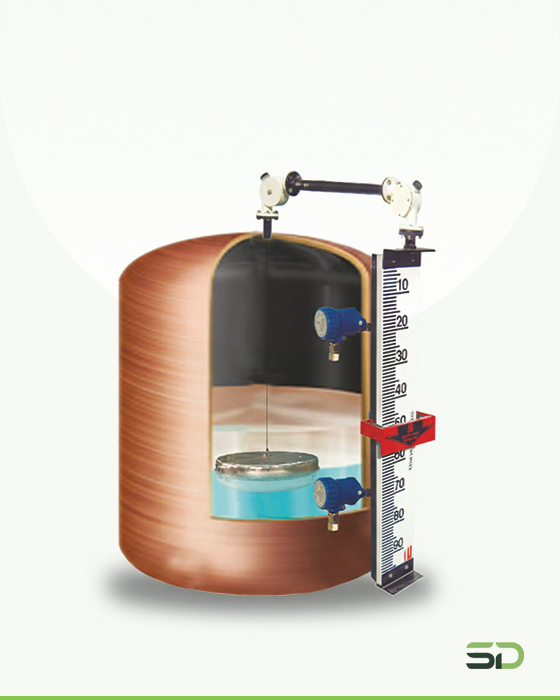

Float & Board Type
Level Indicator

High & Low Level Switch

Product Code:
FBLI6600-LS

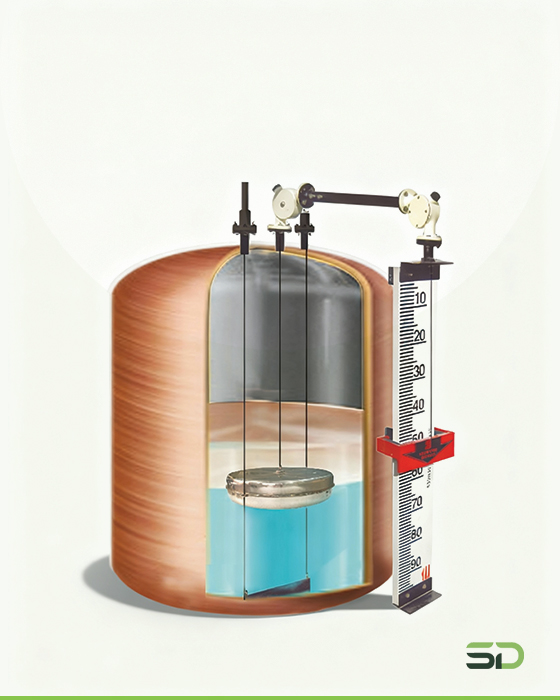

Float & Board Type Level
Indicator
With Wire
Rope Guide Assembley

Product Code:
FBLI8800

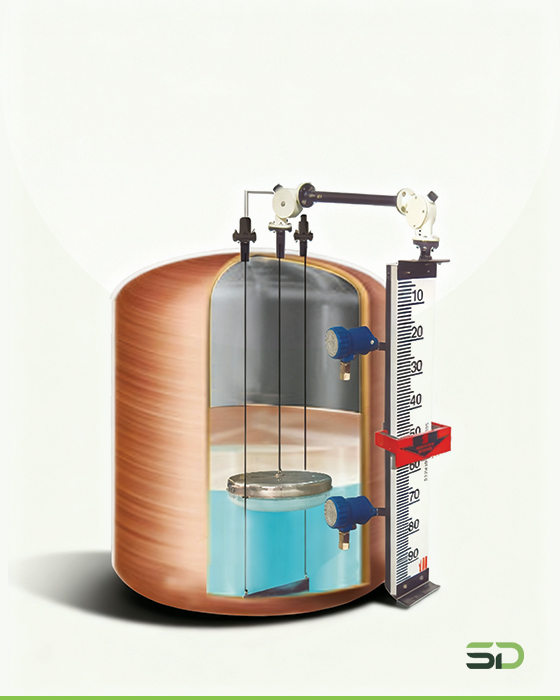

Float & Board Type Level Indicator
With Wire Rope Guide Assembley
 and High & Low Level Switch

Product Code:
FBLI8800-LS
