By-Pass Metal Tube Rotameter

Rotameter

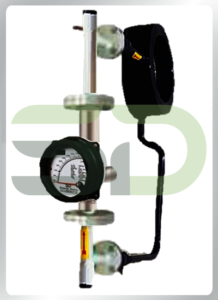

By-Pass Metal Tube Rotameter (BPC SDMT Series)

Product Code : BPCSDMTH

Suitable for measuring flow rates in 50 NB & above pipeline. Available in a variety of materials, carrier rings, impulse piping and rotameter as flow indicator.

Design Standard conforms to ISO 5167/BS 1042

Specification

Fluid : Liquids, Gases & Steam
Density / Sp. Gravity : Up to 1.85
Viscosity : Below 10 cp
DesignTemperature : Up to 150°C
Design Pressure : Up to 25 Kg/cm² in case of SDMT Series
Measuring Range : 22 to 300 M³/hr of Water /Liquid 0.1 to 800 Nm³/hr of Air/Gas at NTP
Line Size : 50 NB to 450 NB
Carrier Ring Materials : MS/CS/SS304/SS304L/SS316/SS316L/Monel/Hastalloy/PVC/PP
Connection : Carrier Ring suitable to mount between ASA/BS/DIN Flanges
Accuracy : ±2% of FSD & ±1.5% on request
Enclosure : Weather proof, IP-65 / Flame Proof
Available Options

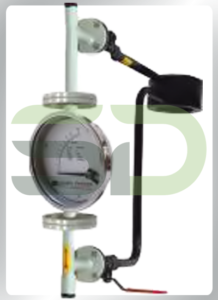

Horizontal Mounting By-Pass
Metal Tube Rotameter With
Carrier Ring

Product Code:
BPCSDMTH

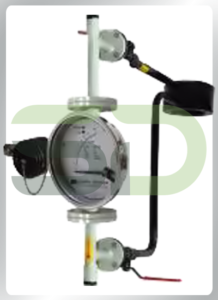

Vertical Mounting By-Pass
Metal Tube Rotameter
With Carrier Ring

Product Code:
BPCSDMTV

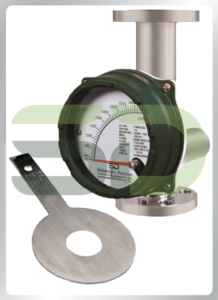

Only Orifice Plate & Metal
Tube Rotameter Without
Carrier Ring And Impulse
Piping For By-Pass Installation

Product Code:
BPC-SDMT-OP

Vertical Mounting By-Pass
Metal Tube Rotameter With
Carrier Ring, Flow Alarm
Switch, 4-20mA Transmitter
& Totalizer

Product Code:
BPCSDMTV-XT-TZ

Horizontal Mounting By-Pass
Metal Tube Rotameter With
Carrier Ring, 4-20 mA
Transmitter & Totalizer

Product Code:
BPCSDMTH-XT-TZ

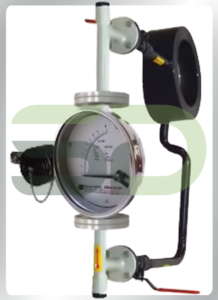

Horizonta Mounting By-Pass
Metal Tube Rotameter With
Carrier Ring & Flow Alarm
Switch Adjustable
Throughout Flow Range

Product Code:
BPCSDMTH-FS
